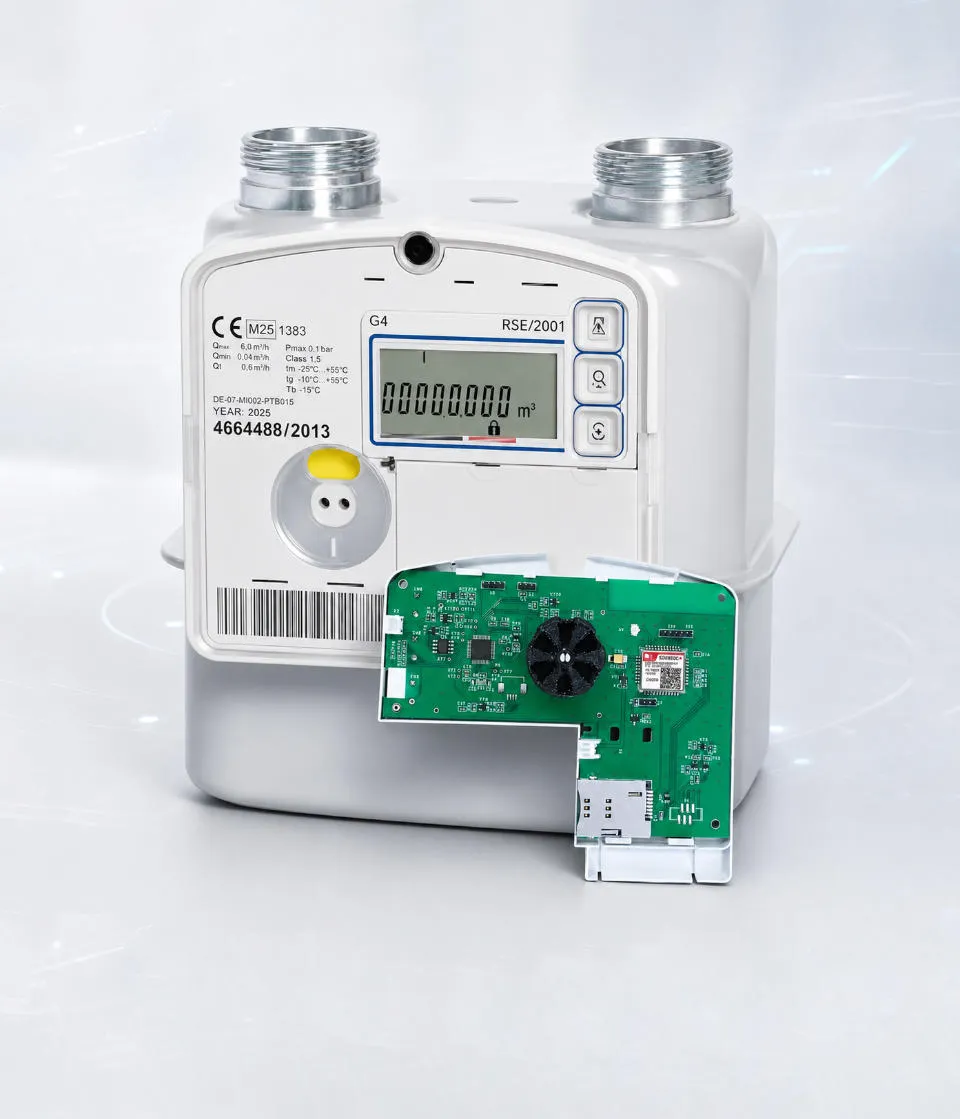

Digital metering head with telemetry
Electronic Metering Device (EMD)
Digital metering head with telemetry for diaphragm gas meters — retrofits existing meters, reports over GSM, NB-IoT or LTE-M and executes remote shut-off commands.
-
Retrofit instead of replacement
The existing diaphragm meter stays in service — the metering head adds telemetry and remote control.
-
Remote and automatic shut-off
Executes remote valve commands and closes automatically above 1.25 × Qmax or when tampering is detected.
-
Low network load
A proprietary protocol cuts GSM data traffic by up to 70% compared with standard MQTT.
The Electronic Metering Device (EMD) is the lowest-friction way to bring an installed base of diaphragm gas meters into the Data Platform: the meter body stays, and the metering head adds telemetry, remote shut-off and anomaly detection. Metrology and telemetry run on independent power circuits, so communication does not draw on the metrology supply.
Full documentation — technical specifications and declarations of conformity — is available on the IoT documentation portal.
| Metering | |
|---|---|
| Application | Digital metering head for diaphragm gas meters |
| Compatible meters | PIETRO FIORENTINI and SAMGAS Group series; other meters with an EN 1359 pulse output |
| Connectivity | |
| Cellular | GSM / NB-IoT / LTE-M |
| Data protocol | Proprietary low-load protocol, up to 70% less GSM traffic than standard MQTT |
| Power | |
| Supply | Dual independent circuits for metrology and telemetry |
| Battery | LiPo 2,000 mAh (3.4–4.2 V) |
| Battery life | 5–10 years, depending on configuration |
| Shut-off & monitoring | |
| Valve control | Remote commands; automatic closure above 1.25 × Qmax or on tamper detection |
| Monitoring | Flow-rate anomalies and tamper events |
| Environment & compliance | |
| Operating temperature | −40 °C to +60 °C |
| Compliance | EN 1359:2017, MID 2014/32/EU, RED 2014/53/EU, RoHS 2011/65/EU, CE |
Full product documentation
Open the product passport, technical specifications, EU declaration of conformity, RoHS declaration, and test reports on our documentation portal.
