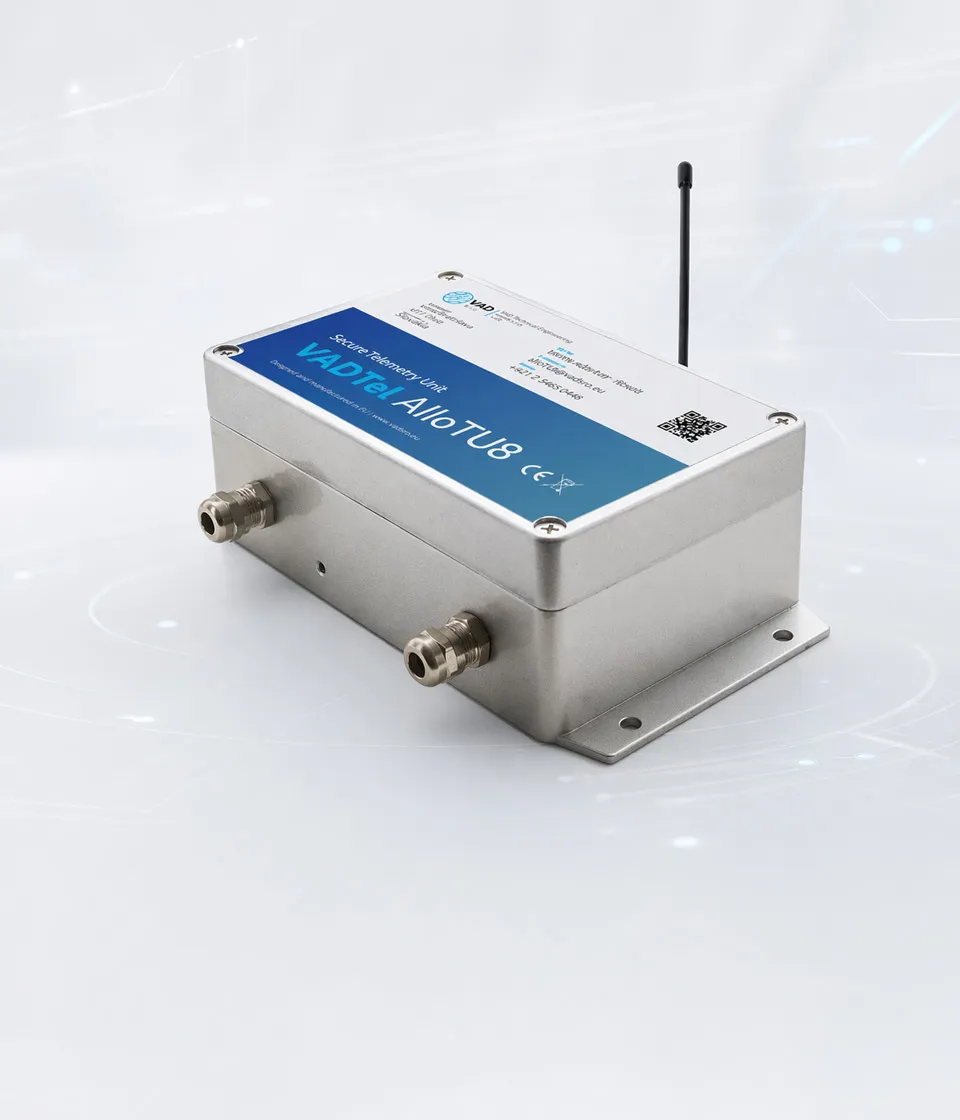

Autonomous IIoT telemetry module
VADTel-AIIoTU8
Battery-powered cellular telemetry module for gas volume correctors in hazardous areas — 8,000 mAh Li-ion, no external power supply needed.
-
Autonomous power
An 8,000 mAh Li-ion battery powers the module — no external supply needed at the metering node.
-
Intrinsically safe link
The integrated Ex ib barrier lets the RS-485 line reach gas volume correctors in Zone 1 (Ex version).
-
Cellular-first
Reports to the Data Platform over GSM, GPRS, LTE-M or NB-IoT, with GSM 850–1900 MHz and LTE-M B1/B3/B8/B20 bands.
VADTel-AIIoTU8 is the autonomous member of the VADTel telemetry family: corrector telemetry like VADTel-IIoTU3, but on its own 8,000 mAh battery for metering nodes without an external power supply. The “A” in the name stands for autonomous.
The module provides remote telemetry for gas volume correctors, heat calculators and water meters and transfers their readings to the Data Platform over cellular networks.
Full documentation — product passport, technical specifications and EU declaration of conformity — is available on the IoT documentation portal.
| Connectivity | |
|---|---|
| Cellular | GSM / GPRS / LTE-M / NB-IoT |
| GSM bands | 850 / 900 / 1800 / 1900 MHz |
| LTE-M bands | B1 / B3 / B8 / B20 |
| Interfaces | |
| RS-485 | Integrated Ex ib intrinsic-safety barrier (Ex version) |
| Ex ib output parameters | Uo 10.5 V · Io 40 mA · Po 0.5 W |
| Hazardous area | RS-485 interface for Zone 1 connections per ATEX Directive 2014/34/EU; the module itself is not ATEX-certified |
| Power | |
| Battery | Li-ion, 3.7 V, 8,000 mAh |
| Operating voltage | 3.4–4.2 V |
| Service life | ≥ 5 (10) years |
| Environment & mechanics | |
| Enclosure rating | IP54 (IEC 60529) · IK07 (EN 62262) |
| Operating temperature | −40 °C to +60 °C |
| Dimensions | 161 × 101 × 60 mm |
| Weight | ≤ 1 kg |
| Compliance & service | |
| CE marking | Manufacturer's EU Declaration of Conformity (RED 2014/53/EU, EMC 2014/30/EU, RoHS, MPE) |
| Warranty | 24 months from the date of purchase |
Full product documentation
Open the product passport, technical specifications, EU declaration of conformity, RoHS declaration, and test reports on our documentation portal.
