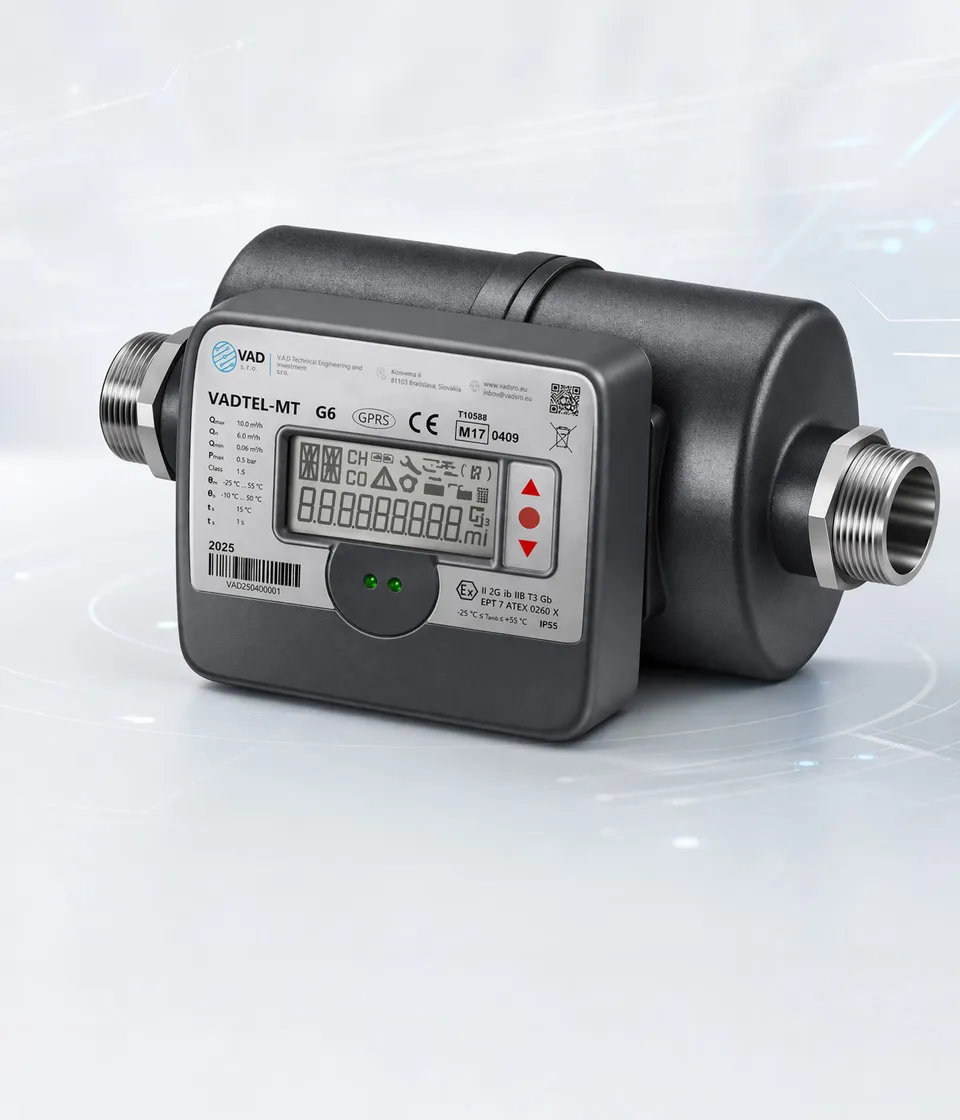

Smart gas meter
VADTel-MT-G6
Micro-thermal smart gas meter with built-in telemetry and shut-off valve — no moving parts, MID-certified to EN 17526:2021.
-
No moving parts
Micro-thermal measurement determines gas volume directly, with no mechanical wear in the measuring path.
-
Built-in shut-off valve
A solenoid valve in the meter shuts off and restores the gas supply.
-
Fiscal-grade
MID-certified (2014/32/EU) to EN 1359 and EN 17526:2021 for billing.
VADTel-MT-G6 combines the meter and the telemetry module in one device, so utilities roll out smart metering without adding a separate module to a mechanical meter. Three flow variants — G6, G10–G16 and G25 — cover residential to commercial consumers, and readings go straight into the Data Platform.
Full documentation — product passport, technical specifications and EU declaration of conformity — is available on the IoT documentation portal.
| Metering | |
|---|---|
| Measuring principle | Micro-thermal, no moving parts |
| Volume conversion | Integrated sensors convert the measurement to base conditions for billing |
| Flow range G6 | Qmin 0.06 · Qt 0.6 · Qmax 11 m³/h |
| Variants | G6 · G10–G16 · G25 (up to 40 m³/h) |
| Connectivity | |
| Cellular | GPRS / NB-IoT |
| Options | LoRaWAN, RS-485 |
| Power | |
| Metrology | Battery life > 6 years in standard operation mode |
| Telemetry | Battery life depends on signal level and reporting frequency |
| Safety & environment | |
| Shut-off valve | Built-in solenoid valve |
| Explosion protection | Ex ib IIB T4 Gb X |
| Enclosure rating | IP65 |
| Operating temperature | −40 °C to +55 °C, RH ≤ 93% non-condensing |
| Compliance | |
| Directive | MID 2014/32/EU |
| Standards | EN 1359, EN 17526:2021 |
Full product documentation
Open the product passport, technical specifications, EU declaration of conformity, RoHS declaration, and test reports on our documentation portal.
