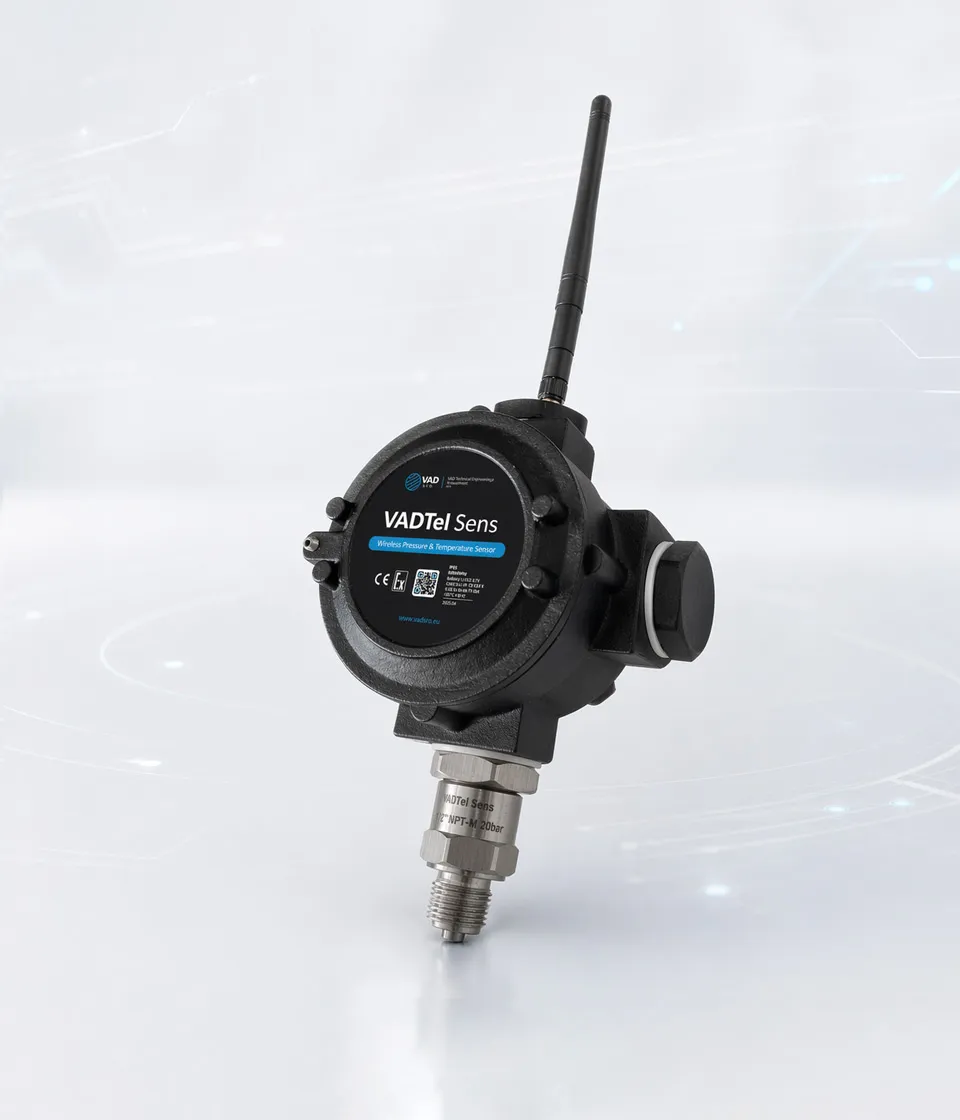

Pressure & temperature sensor
VADTel-SENS
Autonomous cellular pressure and temperature sensor for utility and industrial networks — ATEX version for Zone 1, IP65, up to 5 years on one battery.
-
Its own cellular link
Reports over GSM/GPRS or NB-IoT directly to the Data Platform — no separate telemetry module at the measuring point.
-
Zone 1 version
ATEX II 2G Ex d IIC T6 Gb X flameproof version for direct installation in Zone 1 hazardous areas.
-
Years on one battery
Battery options from 2,000 to 6,000 mAh are rated for 5,000 to 10,000 sessions — up to 5 years of autonomous operation, depending on the reporting interval.
VADTel-SENS closes the telemetry chain at the measuring point: it measures pressure and temperature every 5 to 600 seconds and sends the readings over its own cellular link to the Data Platform, with configurable alarm thresholds and event-driven reporting.
Applications include gas, water, heat, hydraulic, pneumatic, oil and fuel-related networks wherever the sensor configuration is compatible. Pressure trends also support indirect leak detection.
Full documentation — datasheet and EU product passport of the Ex version — is available on the IoT documentation portal.
| Measurement | |
|---|---|
| Measured values | Gauge or absolute pressure and temperature |
| Pressure — gauge | 0–40 kPa for low-pressure gas networks |
| Pressure — absolute | 0–160 / 400 / 600 kPa · 0–1.0 / 1.6 / 2.5 / 4.0 MPa |
| Pressure — custom | Up to 60 MPa on request |
| Pressure accuracy | ±1.0 / ±1.5 / ±2.0 / ±2.5% FS |
| Temperature accuracy | ±1.0 °C standard, ±0.1 °C option |
| Measurement interval | 5–600 s |
| Connectivity & power | |
| Cellular | GSM/GPRS or NB-IoT |
| Battery | Rechargeable LiPo, 3.7 V — 2,000 / 4,000 / 6,000 mAh |
| Guaranteed sessions | 5,000 / 7,500 / 10,000, depending on battery option |
| Autonomy | Up to 5 years typical, application-dependent |
| Mechanical & environment | |
| ATEX (Ex version) | II 2G Ex d IIC T6 Gb X |
| Housing | Stainless steel, IP65 (IEC 60529) |
| Process connection | M20 × 1.5 |
| Media compatibility | AISI 316L / AISI 304 |
| Ambient temperature | −40 °C to +60 °C |
| Process temperature | −40 °C to +85 °C |
| Size and weight | Approx. 125 × 210 × 90 mm, 1.0–1.2 kg |
Full product documentation
Open the product passport, technical specifications, EU declaration of conformity, RoHS declaration, and test reports on our documentation portal.
